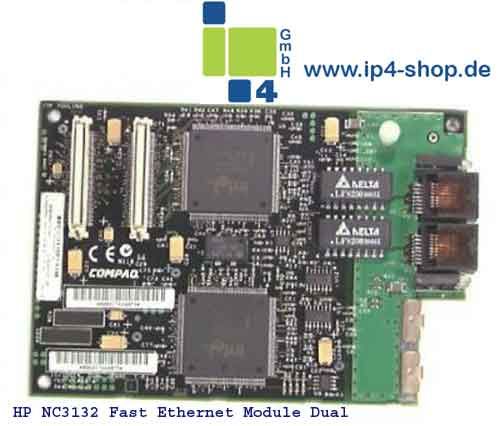

HP Compaq NC3132 Fast Ethernet Upgrade Modul Dual 10/100 REF

ab 69,95 €
exkl. 19% USt., zzgl. Versand
  • sofort verfügbar
  • ArtikelNr.: 200901237
  • Artikelgewicht: 0,50 kg
  • Versandgewicht: 0,50 kg
Jetzt Kaufen
bitte wählen

Beschreibung

HP 338479-001 Compaq NC3132 Fast Ethernet Module Dual 10/100
Modell:
338456-B22
Zustand: refurbished, 12 Monate ip4 Gewährleistung

  • Manufacturer: HP Compaq
  • Part/Assembly Number(s): 009545-001
  • Option/Retail Part Number: 338456-B22
  • Spare Number(s): 338479-001

    Compatible with Server Models: 1850, 3000, 5500, 6000, 6400, 6500, 7000, 8000, 8500

  • The NC3131 is a modular network adapter that provides a scalable transition path from Ethernet to Fast Ethernet to Bonded Fast Ethernet to Gigabit network connections. The Compaq NC3131 Fast Ethernet Adapter includes two 10/100BASE-TX ports with optional upgrade modules for two additional 10/100BASE-TX ports, a single 100FX port or a Gigabit Ethernet port (SX or LX). The NC3131 provides a cost-effective transition for server adapter upgrades. Its modular design enables additional fault-tolerant redundancy and the ability to upgrade to higher network performance without having to replace the base adapter.

    The NC3131 includes an efficient 64-bit bus data transfer between the network and the PC that is essential for high-performance and low CPU utilization. This model also has a 32/64-bit PCI Universal Connector to work in either 32- or 64-bit bus slots. It also uses bus-mastering technology to maximize throughput and minimize CPU utilization.

    Transmit Load Balancing (TLB) and Switch-Assisted Load Balancing (FEC/GEC/802.3ad static-mode configuration only) are two port-bonding methods supported by the NC3131. TLB provides both failover and balancing of transmit traffic across all adapters for increased performance. For even higher performance, Switch-Assisted Load Balancing (SLB) provides port failover and balancing of both transmit and receive traffic across all adapters when connected to a switch that supports this feature.

    The NC3131 NIC is fully Plug and Play compliant with the 2.1 PCI specification, this adapter automatically configures its I/O address and interrupt (IRQ) settings for easy installation. The NC3131 drivers can be used for all Compaq 10 or 100 Mbps NC series network adapters. No driver change is required when moving from 10 to 100 Mbps. Common drivers provide consistency, easy management and support, and save money and time. Using the Compaq provided OS drivers, the NC3131 senses for 10 or 100 Mbps and half- or full-duplex and automatically configures to the highest common network connection speed between the adapter and hub or switch port.

    The Network Fault Tolerance feature of the NC3131 ensures that the server can always keep an active link. After installing a second, compatible adapter, if the primary network connection fails, the second, backup adapter will automatically take over, retaining the network connection. The NC3131 can be configured to tail over to any NC31xx, NC61xx, or NC71xx adapter by using the latest drivers.

    Product Features
    Feature Specification
    Part Numbers Option part #: 338456-B21

    Spare part #: 338478-001

    Assembly #: 009542-003
    Bus interface 32-/64-bit PCI bus-master interface
    Interrupts supported Automatically configured by Plug & Play EEPROM
    Data Transfer Base card is full or half-duplex capable at 10 or 100 Mbps on both ports. NIC is upgradable to additional two ports of 10/100 Base-TX or Gigabit Ethernet SL/LX
    Transmission modes Full and half duplex
    Compliance Both ports IEEE 802.3/802.3u 10BASE-T and 100BASE-TX compatible
    Power requirements 1050mA @ 5V maximum
    Certifications FCC Class B, CE Mark
    Connector Single RJ-45 connector for each port
    Buffer memory 6KB per port
    Communication processor Intel 82558 MAC/PHY
    Standard Features
    • Half- and full-duplex operation. Full Duplex at 20Mbps for Ethernet, 200Mbps for Fast Ethernet.
    • 6 KB of buffer memory, FIFO.
    • Automatically senses 10 and 100Mbps. Auto-negotiation (hardware and software implementations)
    • Network Fault Tolerance capability when configured with a 2nd NIC.
    • PCI Hot Plug compatible.
    • Transmit Load Balancing (TLB) and Switch-Assisted Load Balancing (SLB)
    • Plug and Play capability and PCI 2.1 support.
    • 64/32-bit / 33 MHz PCI Bus Mastering.
    • Supports Windows NT4.0 and NT3.51, Novell NetWare 3.12, 3.2, 4.11, 4.2 and 5.0 and UNIX operating systems
    • LEDs for activity, link integrity, and speed (10 or 100 Mb/s)
    • PCI Hot Plug compliant (available on Microsoft Windows 2000, NT 4.0 and NetWare 4.0, 4.11, 4.2, and 5.0)
    • Configurable for Network Fault Tolerance (NFT)
    • Two RJ-45 ports operating at 10 or 100 Mb/s
    • Built-in Compaq Network Teaming and Configuration (CPQNTAC) utility provides NIC teaming, diagnostics, and statistics for Windows NT 4.0 users and diagnostics and statistics for Windows NT 3.51 users. Windows 95 users can access CPQSET, a utility providing diagnostics and statistics.
    • Compaq SmartStart v4.4 compatible
    Supported cabling Cable support ? Cat. 3, 4, 5 UTP for 10 Mbps and Cat. 5 UTP for 100 Mbps
    Operating system support
    • Windows 2000
    • Windows NT 4.0
    • Windows NT 3.51
    • Novell NetWare 5.x, 4x, and 3x Server
    • SCO UnixWare 7.x
    • SCO OpenServer 5.x
    • SCO UnixWare 2.1
    • MS-DOS Client for unattended install
    • OS/2 Warp Server
    Operating temperature 0° to 55°C/32° to 131°F
    Shipping temperature -65° to 85°C/-85° to 185°F
    Operating humidity Non-condensing 90% - 10%
    Warranty information The remaining warranty of the Compaq server product in which it is installed to a maximum of three-year limited warranty. Contact  Technical Support at  800-652-6672 for details.

    Eigenschaften

    • Zustand: Es handelt sich um Gebrauchtware, welche von unserem Technikerteam getestet wurde. Die Ware ist technisch und optisch in einem einwandfreien Zustand, jedoch können teilweise Gebrauchtspuren zu sehen sein, inkl. 12 Monate ip4 Gewährleistung.
